In the end user, our engineer helped to install the HFQC model and unload the jumbo adhesive rolls. After testing, finally, this slitter rewinder can be run at high speed 400m/min stably, and get a good quality finished rolls.

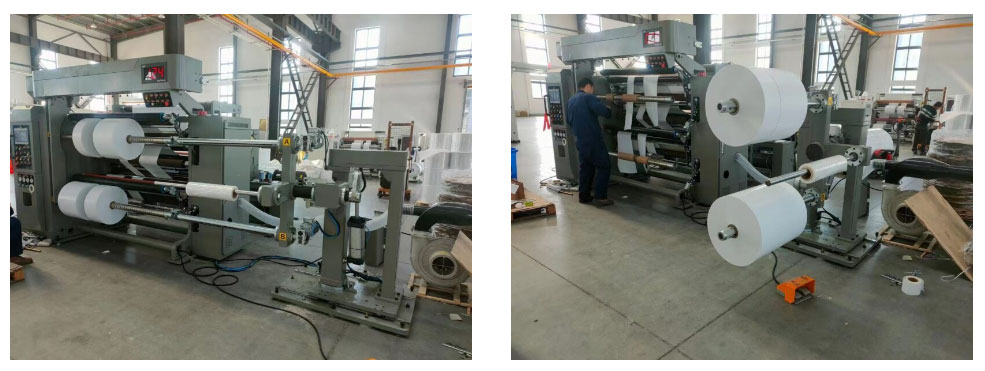

Generally speaking, the finished roll on the differential is too heavy to unload by hand for workers, so we design this discharge shelf to help operators. As you can see in the following picture, the shelf can swing out. which can keep the machine running when unloading rolls.
How is the user packing and moving finished rolls?

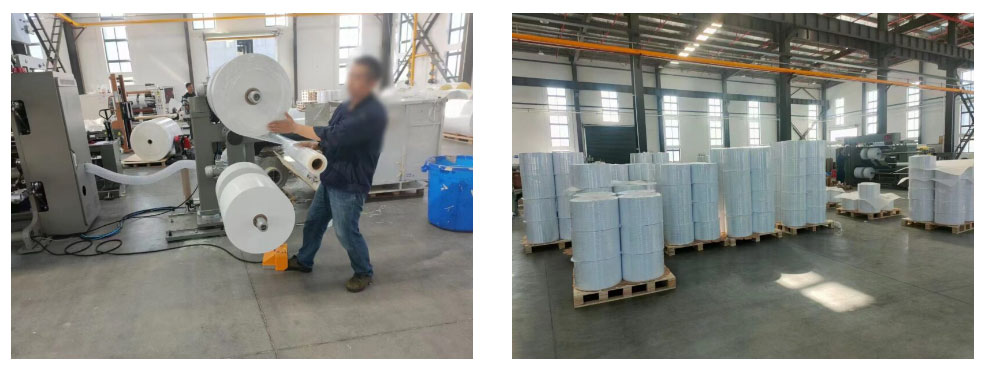

The user can pack finished rolls under the help of the auxiliary roller, then turn around the shelf, and move it.
ARE ANY OTHER MATERIALS HFQC(S) CAN HANDLE?

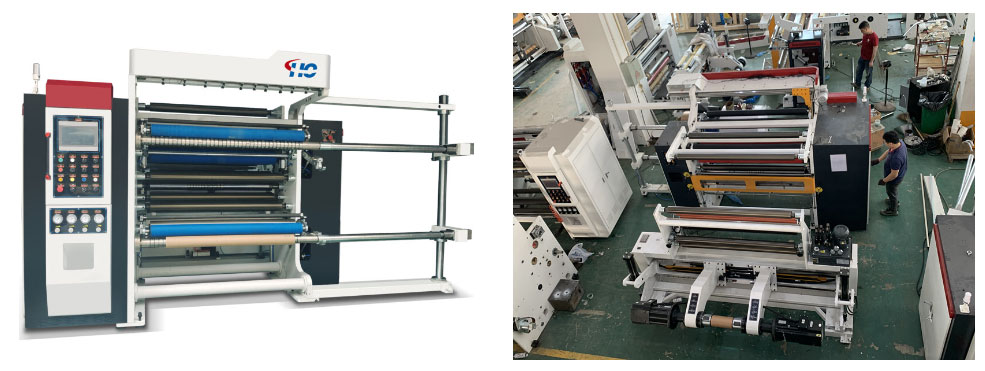

Of course, this slitter can be used in a variety of materials, not only adhesive Stickers but also films like PET, BOPP, CPP, PE, PVC, laminates, or any other paper materials.HFQC（S） series advantage is the high rack type, which makes the product clean, and the angle of the slitter fits the nature of the adhesive better.
Its standard specification is shown as follows:
| Model | HFQC-1300S | HFQC-1600S | HFQC-1800S |
| Max. Web Width(mm) | 1300 | 1600 | 1800 |
| Max. Unwind Diameter(mm) | Φ1400 | ||
| Unwind stand | Shaft-less auto loading & floating type with splice table | ||
| Unwind tension control | Magnetic powder brake with PLC control | ||
| Inner core diameter(mm) | 76mm(3”) and 152mm(6”) step chuck | ||
| Web guiding system | Ultrasonic sensor | ||
| Slitting techniques | Rotary shear knife (Razor blade cutting in grooved roller) | ||
| Trim disposal | Trim suction fan 2.2kw | ||
| Max. Rewind Diameter(mm) | Φ600(Φ800 can be customized) | ||
| Rewind tension control | Servo motor*2pcs+differential rewind shafts*2pcs | ||
| Inner core diameter(mm) | 76mm(3”) | ||
| Rewind stripper Width(mm) | 30 | 30 | 40 |
| Speed(m/min) | ≤400 | ||
| Cutting Thickness | For film/self-adhesive: 12-300μm, For paper:30-250g (according to the materials) | ||
| Cutting accuracy(mm) | ±0.15 | ||
| Main Motor Power(kw) | 5.5 | 7.5 | 7.5 |
| Rewind motor(kw) | 5.5*2 | 7.5*2 | 7.5*2 |
| Total power(kw) | 18 | 25 | 26 |
| Power supply | 380V 50HZ 3phases(other voltage can be customized) | ||
| Air supply | 0.6-0.8 Mpa, 0.8m3/Min | ||
| Weight(kg) | 3000 | 3400 | 3600 |
| Overall Dimension(mm) | 3300×4100×2300 | 3300×4300×2300 | 3300×4500×2300 |
