Last year, we received a big order from Mexico. They need roll to sheet machine.
They are a strong factory that also supplies many top brands with premium perfume boxes. Including the famous Victoria’s Secret and Coach.
After more than 20 days of transportation, the machine finally arrived in Mexico. With our assistance, the customer quickly installed the machine.

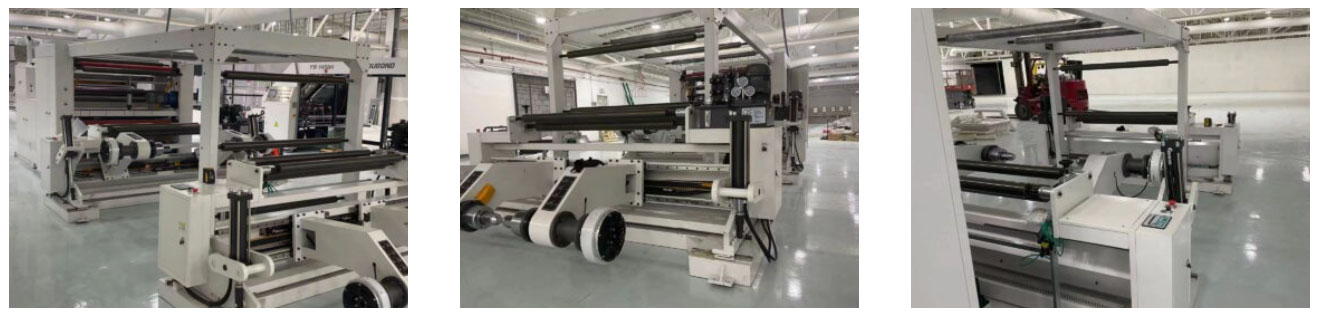

Below, is a photo show of their completed installation.

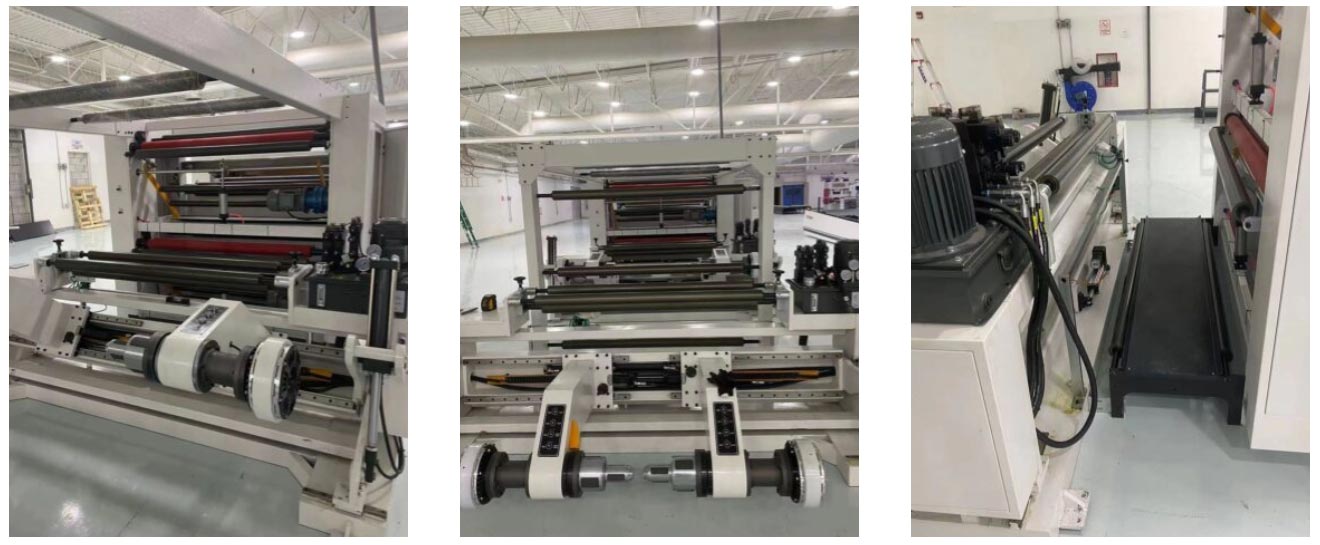

As we can see, this roll-to-sheet machine uses two roll inputs. Increasing one set unwind part which can improve the production efficiency.
Here we use 3″ and 6″ shaftless unwind sections according to the customer’s needs.
And adding a roll of unwinding is equivalent to cutting double thickness of paper at a time. It can improve the speed of machine cutting thin paper.
Its standard specification is shown as follows:
| Model | HKZ-1100W | HKZ-1400W | HKZ-1600W |
| Max. Web Width(mm) | 1100 | 1400 | 1600 |
| Max. Unwind Diameter(mm) | Φ1400 | ||
| Unwind stand | Shaft-less auto loading & floating type | ||
| Unwind tension control | Magnetic powder brake with PLC control | ||
| Inner core diameter(mm) | 76mm(3”) and 152mm(6”) step chuck | ||
| Web guiding system | Ultrasonic sensor | ||
| Cutting length(mm) | 300-1200(longer cutting length can be customized) | ||
| Precision of cross cutting | ±0.2 | ||
| Stacker type | Auto stacker | ||
| Max. pile stack height(mm) | 1200 | ||
| Max. speed(times/min) | 120-150 times/min (Based on the cutting length and materials) | ||
| Cutting Thickness | For paper:40-500g
(according to the materials) |
||
| Unwind traction motor(kw) | 1.5* 2 sets | 1.5* 2 sets | 1.5* 2 sets |
| Servo motor(kw) | 4.4 | 4.4 | 5.5 |
| Knife cutting motor(kw) | 1.5 | 2.2 | 2.2 |
| Stacker lifter motor(kw) | 1.5 | 1.5 | 1.5 |
| Total Power(kw) | 12 | 13 | 16 |
| Power supply | 380V 50HZ 3phases(other voltage can be customized) | ||
| Air supply | 0.6-0.8 Mpa, 0.8m3/Min | ||
| Weight(kg) | 5000 | 5500 | 6500 |
| Overall Dimension(mm) | 8600*2900*2000 | 8600*3300*2000 | 8600*3500*2000 |
