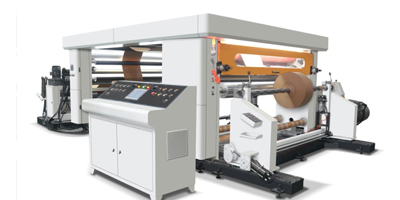

How convenient and efficient are the loading and unloading processes of the Frame Type Roll Slitting Rewinding Machine?

In the fast-paced production environment of roll material processing, the efficiency of the loading and unloading processes of the Frame Type Roll Slitting Rewinding Machine is like a crucial gear in the production chain. Whether its operation is smooth or not directly affects the overall efficiency of the production process. Convenient and efficient loading and unloading processes can not only reduce the downtime of the equipment, increase production capacity, but also reduce the labor intensity of operators and optimize the allocation of production resources. This article will deeply explore the design and characteristics of the equipment in terms of loading and unloading to clarify the specific manifestations of its convenience and efficiency.

I. The Convenience of the Loading Process
Roll Loading Auxiliary Devices
Many Frame Type Roll Slitting Rewinding Machines are equipped with special roll loading auxiliary devices, such as liftable roller brackets. When loading rolls, the roller brackets can lower their height to facilitate forklifts or workers to place the rolls on them. For example, when the roll is heavy, the forklift can place the roll smoothly on the lowered roller bracket, and then the roller bracket rises so that the roll is on the same height plane as the unwinding shaft of the equipment, which greatly reduces the difficulty for operators to carry the roll and improves the convenience of loading.
Some equipment also has an automatic roll centering device. After the roll is placed on the roller bracket, this device can detect the position of the roll through sensors and automatically adjust the center position of the roll to align it precisely with the unwinding shaft. This function avoids the deviation that may occur in manual centering, reduces the loading time, and also lays a good foundation for the subsequent precise slitting and rewinding.
Design of the Unwinding Shaft Connection
The connection method of the unwinding shaft is crucial for the convenience of loading. Some advanced equipment adopts a quick clamping sleeve connection structure. Operators only need to insert the core shaft of the roll into the unwinding shaft and then rotate the clamping sleeve to achieve a firm connection, without the need for cumbersome fastening operations with a large number of bolts and nuts. For example, in production tasks that require frequent roll changes, this quick connection method can shorten the loading time by several minutes each time, greatly improving production efficiency.
The diameter and length of the unwinding shaft are usually universal and adjustable to a certain extent. They can meet the loading requirements of rolls of different specifications, reducing the need to replace the unwinding shaft or make complicated adjustments due to changes in roll size, further improving the convenience of the loading process.

II. The Efficiency of the Unloading Process
Automatic Unloading after Rewinding Completion
Most modern Frame Type Roll Slitting Rewinding Machines have the function of automatic unloading after rewinding is completed. When the rewinding reaches the preset parameters such as length, diameter or weight, the equipment will automatically stop rewinding and start the unloading procedure. For example, the rewinding mechanism will automatically loosen the connection with the roll core and then push the completed roll material smoothly to the unloading area through an unloading pushing device. This automated process does not require human intervention, which not only improves the unloading efficiency but also reduces the risk of damage to the roll material caused by improper operation during the unloading process.
In the unloading area, some equipment is also equipped with roll material buffer racks or conveyor belts. The unloaded roll material can be directly placed on the buffer rack, waiting for subsequent handling or packaging, or directly transferred to the designated packaging station through the conveyor belt, realizing a seamless connection between the unloading and subsequent processes and further optimizing the production process.
Simplicity of the Unloading Operation
In some equipment without the automatic unloading function, the unloading operation is also designed to be relatively simple. For example, the rewinding shaft adopts a structure that is easy to disassemble, such as a one-sided fixed and the other side can be quickly pulled out. When unloading is required, operators only need to loosen the one-sided fixing device to pull out the rewinding shaft together with the roll material and then transfer the roll material to the unloading platform or transportation tool. This design reduces complicated disassembly steps and makes the unloading process more efficient and quick.
The unloading area of the equipment usually has sufficient space and a reasonable layout, which is convenient for operators to use forklifts, pallet trucks and other tools to carry the roll material. Meanwhile, the guardrails and other structures around the equipment will not hinder the unloading operation, ensuring that operators can complete the unloading task safely and efficiently.

In conclusion, the Frame Type Roll Slitting Rewinding Machine fully considers the convenience and efficiency of the loading and unloading processes in its design. Through a series of auxiliary devices, optimized connection designs and automated unloading functions, etc., it effectively improves the overall production efficiency of the equipment in the roll material processing process, enabling it to better meet the needs of modern industrial production for high efficiency and precision.
