Application

We specially design FQL with differential shaft rewind to fulfill the customer who have thickness uneven and tension sensitive materials. Like adhesive paper, paper and film.

Especially suitable for label industry, paper cup making machines, paper bag making machines, packaging and printing industries in next step.

Suitable for Various paper from 30-300gsm

Suitable Materials

√ 30-300g various paper (kraft paper, art paper, silicon paper, coated paper, newsprint paper and so on)

√ Sticky label (adhesive paper)

√ Various laminates (film to film, film to paper)

√ Film thickness≥30 micron

√ Nonwoven and so on

Features

1. The use of advanced mechanical structure and control system can achieve high-speed, continuous slitting and winding operations, improving production efficiency.

2. Adjustable cutting system to ensure accurate material slitting.

3. Polyurethane material is used for long-term use.

4. All aluminum alloy guide rollers are processed with dynamic balance and hard oxidation.

5. All the knife shafts are made of #45 steel coated with 100μm thickness hard chrome and are processed with dynamic balancing.

6. Three individual servo motors synchronous control traction and duplex rewind which provides accurate web tension is calculated by PLC automatically.

7. Suitable for processing needs of various materials and various widths

8. Three independent servo motors synchronously control traction and two-way winding, and PLC automatically calculates the accurate coil tension.

9. Shaftless unwind with hydraulic auto loading for heavy jumbo rolls. Web Guide system through ultrasonic sensor to correct reels edge to guarantee feeding exact.

10. Automatic rolls unloading structure for rewinding shafts: mechanical arm moving on the linear guide rail to unload the shaft.

Main Parameter

Model	FQL-1600W	FQL -1800W	FQL -2000W
Max. loading jumbo roll width (mm)	1600	1800	2000
Max. loading jumbo roll diameter (mm)	Φ1800	Φ1800	Φ1800
Max. loading jumbo roll weight (kg)	3500	3500	3500
Unwind paper tube inner core diameter	3” (76mm) & 6” (152mm)	3” (76mm) & 6” (152mm)	3” (76mm) & 6” (152mm)
Web guide sensor	Ultrasonic sensor	Ultrasonic sensor	Ultrasonic sensor
Web traction system	Double rubber roller traction	Double rubber roller traction	Double rubber roller traction
Slitting system	Shear Slitting Circular knife	Shear Slitting Circular knife	Shear Slitting Circular knife
Min. slit width (mm)	30	30	30
Rewind paper tube inner core diameter	3” (76mm)	3” (76mm)	3” (76mm)
Max. rewind diameter (mm)	1200	1200	1200
Edge trimming system	Suction fan 2.2kw	Suction fan 2.2kw	Suction fan 2.2kw
Machine speed	<500m/min	<500m/min	<500m/min
Cutting thickness	30-300gsm	30-300gsm	30-300gsm
Traction motor (kw)	15	18.5	18.5
Rewind motor (kw)	15*2	15*2	18.5*2
Total power (kw)	52	56	60
Power supply	380V, 3P, 50HZ	380V, 3P, 50HZ	380V, 3P, 50HZ
Air supply	0.6-0.8 Mpa, 0.8m3/Min	0.6-0.8 Mpa, 0.8m3/Min	0.6-0.8 Mpa, 0.8m3/Min
Weight(kg)	11500	12800	14200
Overall Dimension(mm)	810042002300	810044002300	810046002300

Standard Configuration

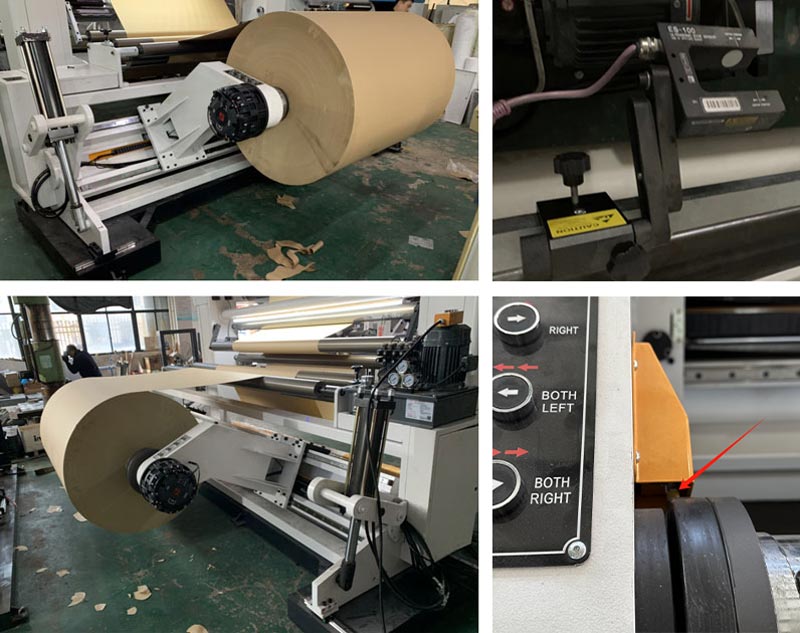

1. Heavy-duty Shaftless unwind

> Heavy-duty Shaftless unwind with auto hydraulic lifting. Equipped standard 3” & 6” step chuck.

> Hydraulic system for lifting big jumbo roll from the floor.

> Mechanical arms separately moved on rail by hydraulic driven. One button moves, easy operate.

> RE pneumatic brake*2sets for unwind tension control.

> Web adjustment roller ensures the web tension balance from left to right.

> Proximity sensor for automatic calculation of unwinding rolls diameter.

> Standard spec:

Max. Reel diameter: 1800mm

Max. Reel weight: 3500kg

Inner core size: 3” (76mm) & 6” (152mm)

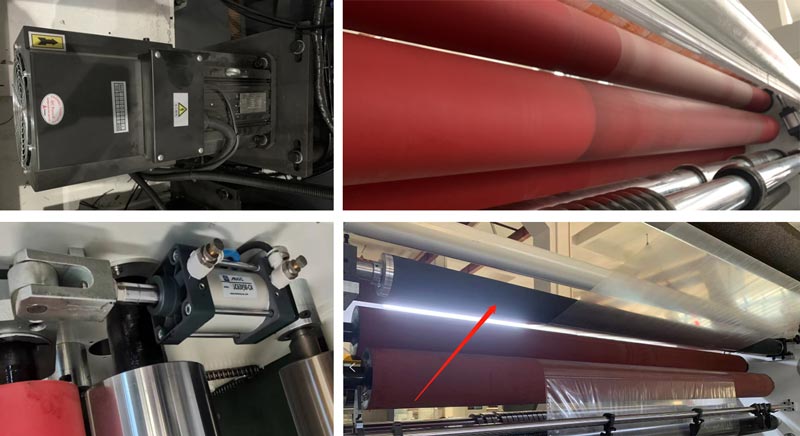

2. Double Rubber Roller Traction System

> Traction use double rubber roller with TPU material driven for both thin and thick pape

> Nip rubber roller with adjustable pneumatic control for perfect tension control.

> Servo motor driven both main traction roller and slitting knife roller with Synchronous belt transmission
Ensure that the material does not slip or deform.

> Banana roller to spread the web

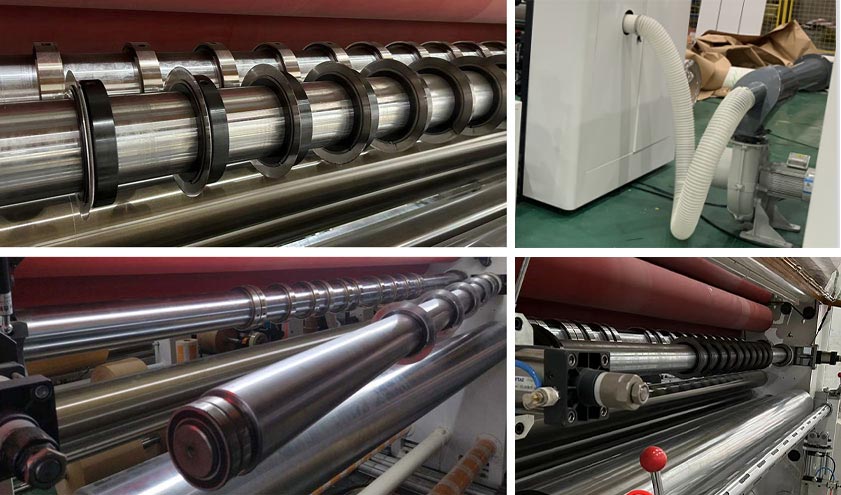

3. Slitting Unit.

> Easy-setting rotary shear knife *10sets install on machine for slitting

> Knife up/down and left/right fine-adjustment are controlled by worm-gear reducers.

> Pneumatic bottom knife shaft is convenient to setting the bottom rotary knives.

> Cantilever upper knife shaft.

> Trim disposal: 2.2 kw trim suction fan.

> Stand Spec: Min. slit width: 30mm

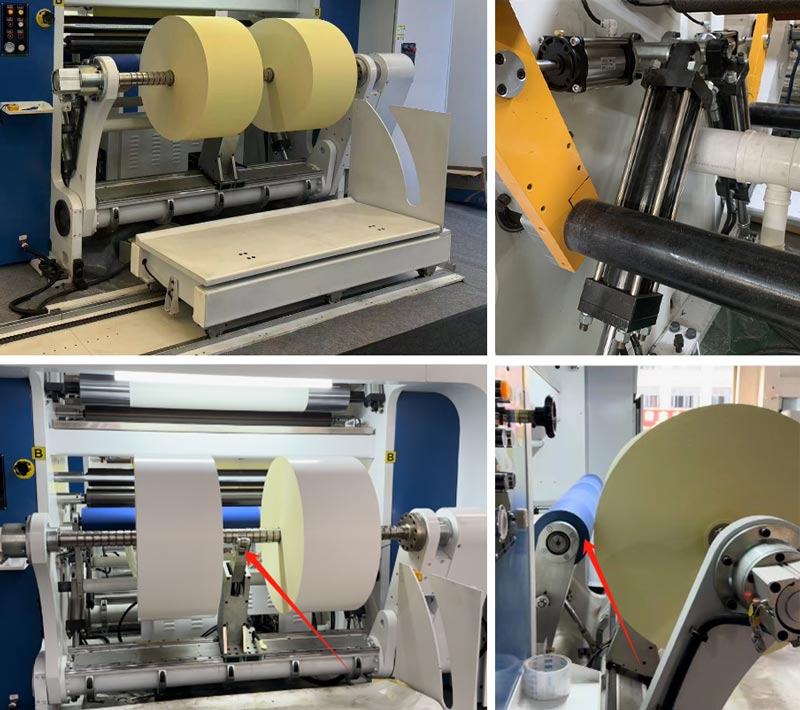

4. Rewinding system.

> The left and right rewind structure, installed 2 pcs 3” differential shaft.

> Pneumatic clamp for rewind shaft.

> Servo motor *2sets drive system provides the accurate winding tension control.

> Automatic rolls unloading structure: hydraulic control to unload the shaft with heavy finished rolls.

> Precision roll pressure control system: With the increase of roll diameter, the unloading cantilever will drop accurately under the coordination control of the hydraulic proportional valve and the pressure roll position detector, to ensure perfect tension control of materials during rewinding.

> Standard spec: Max rewind diameter: 1200mm.

5. Control Panel

> The arrangement of buttons has been designed for easy operation

> The auxiliary control panel is installed at the back of the machine, easy for one person to operate

> Emergency stop installed

6. Electrical Box & Pneumatic

> All electrical appliances comply with China 3C certificate standard. Safe and long-lasting.

> The layout of the electronic control board has been carefully designed, arranged neatly, and occupies a small area.

> The cabinet door has a grille for good heat dissipation.

7. PLC & HMI.

>. Colorful 10” touch-screen and PLC (Germany, Siemens).

>. Easy exchange both Chinese & English language on touch screen.

>. Automatic tension& diameter calculate and control: Set taper and initial tension on touch screen for your materials, PLC will detect current tension and current diameter automatically and accurately.

>. Meter reached auto alarm and stop function.

>. Unwind Set diameter reached auto alarm and stop function.

>. One button auto speed-up function: Press one button, machine will speed up to your set speed smoothly and automatically.

>. Rewind shaft forward and backward function.

>. Problem diagnosis function on touch screen, if any problems occur, you can check I/O page to find it.

OPTIONAL

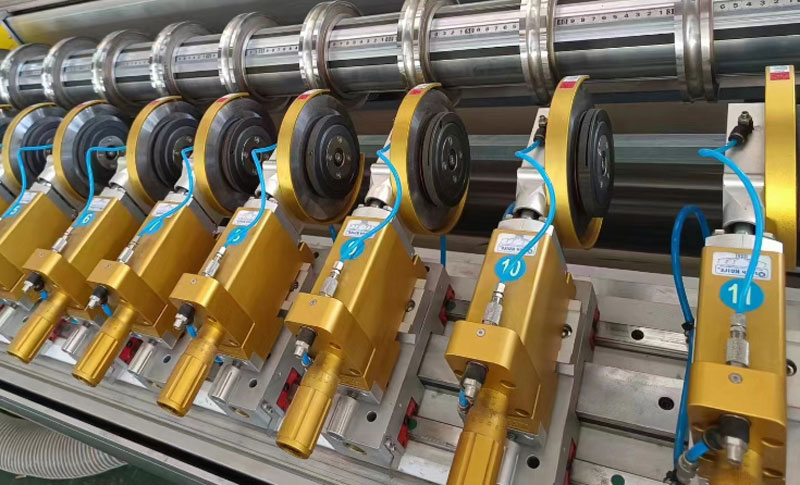

1. Auto slit knife positioning

> Automatic positioning function both for bottom knife and pneumatic knife

> Individual system for auto knife positioning.

> Distance between knife setting on touch screen.

2. Dust cleaning system

> This dust cleaning system installed near to the slitting knife.

> Dust cleaning strip connect with suction fan to remove the dust.

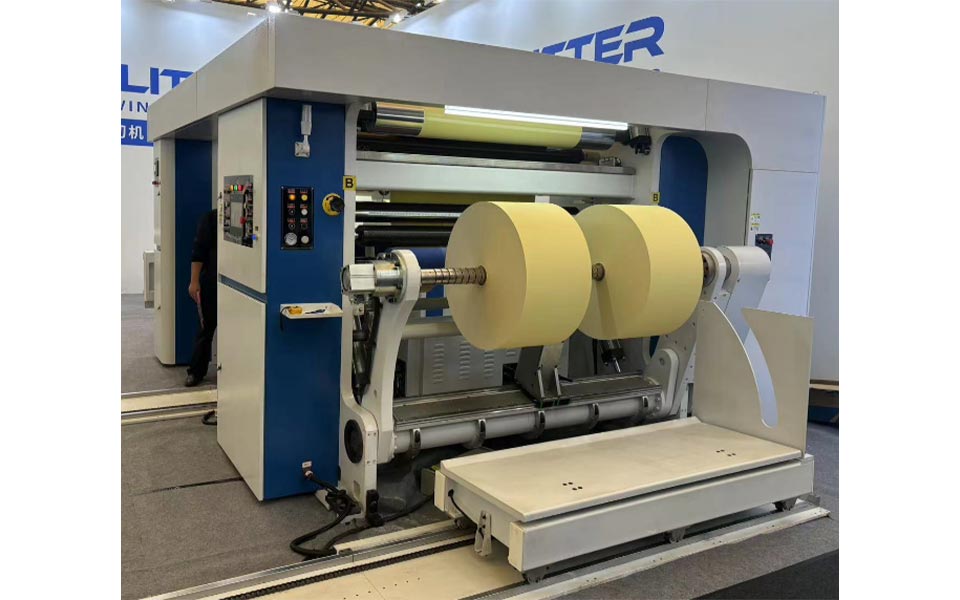

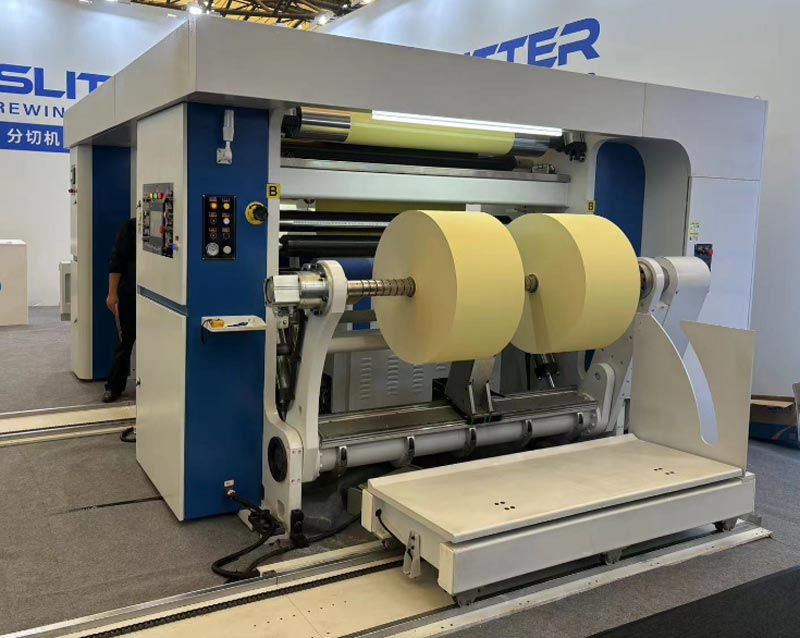

FQL High-speed Slitter Rewinder
