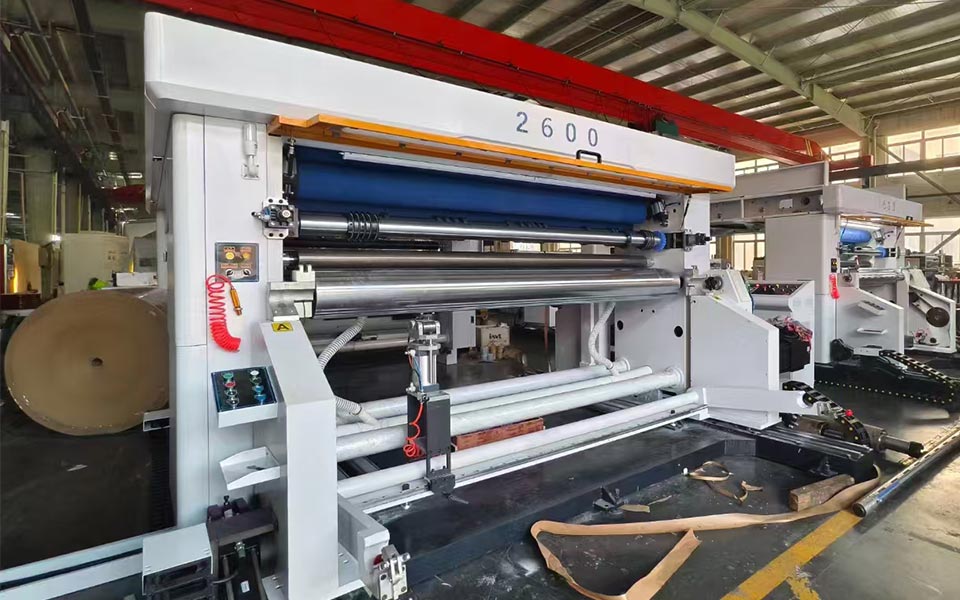

Application

We specially design HFQL with large rewind diameter (1500mm) to fulfill the customer who want to get big diameter finished rolls.
This machine is suitable for slitting and rewinding large wide jumbo roll, like various papers, adhesive sticker, or some laminates into narrow width rolls.

Suitable Materials

√ 30-500g various paper (kraft paper, art paper, silicon paper, coated paper, newsprint paper and so on)

√ Sticky label (adhesive paper)

√ Various laminates (film to film, film to paper)

√ Film thickness≥30 micron

√ Nonwoven and so on

Features

1. Fuselage wallboard thickness 60mm; materials: Q235, ensure high-speed stable running.

2. All rubber rollers are made of polyurethane for longtime using

3. All aluminum alloy guide rollers are processed with dynamic balance and hard oxidation.

4. All the knife shafts are made of #45 steel coated with 120μm thickness hard chrome and are processed
with dynamic balancing.

5. All electrical appliances comply with China 3C certificate standard.

6. Three individual servo motors synchronous control traction and duplex rewind which provides accurate web tension is calculated by PLC automatically.

7. Germany Siemens PLC control system with touch screen brings much convenience for operator, it has multi functions, like meter reached auto stop, tension auto control, and so on.

8. Shaftless unwind with hydraulic auto loading for heavy jumbo rolls. Web Guide system through ultrasonic sensor to correct reels edge to guarantee feeding exact.

9. Automatic rolls unloading structure for rewinding shafts: mechanical arm moving on the linear guide rail to unload the shaft.

10. Two trimming side material through plastic tube connect fan automatic move out.

Main Parameter

Modeli	HFQL-1800W	HFQL-2400W	HFQL-2600W
Max. loading jumbo roll width (mm)	1800	2400	2600
Max. loading jumbo roll diameter (mm)	Φ1800	Φ1800	Φ1800
Max. loading jumbo roll weight (kg)	3800	3800	3800
Unwind paper tube inner core diameter	3” (76mm) & 6” (152mm) &12” (304.8mm)	3” (76mm) & 6” (152mm) &12” (304.8mm)	3” (76mm) & 6” (152mm) &12” (304.8mm)
Web guide sensor	Ultrasonic sensor	Ultrasonic sensor	Ultrasonic sensor
Web traction system	Double rubber roller traction	Double rubber roller traction	Double rubber roller traction
Slitting system	Shear Slitting Circular knife	Shear Slitting Circular knife	Shear Slitting Circular knife
Min. slit width (mm)	30	50	60
Rewind paper tube inner core diameter	3” (76mm)	3” (76mm)	3” (76mm)
Max. rewind diameter (mm)	1500	1500	1500
Edge trimming system	Suction fan 5.5kw	Suction fan 5.5kw	Suction fan 5.5kw
Machine speed	<500m/min	<500m/min	<500m/min
Cutting thickness	30-500gsm	30-500gsm	30-500gsm
Traction motor (kw)	15	18.5	22
Rewind motor (kw)	15*2	18.5*2	22*2
Total power (kw)	55	65	75
Power supply	380V, 3P, 50HZ	380V, 3P, 50HZ	380V, 3P, 50HZ
Air supply	0.6-0.8 Mpa, 0.8m3/Min	0.6-0.8 Mpa, 0.8m3/Min	0.6-0.8 Mpa, 0.8m3/Min
Weight(kg)	13500	14500	15500
Overall Dimension(mm)	810048002300	810054002300	810056002300

Standard Configuration

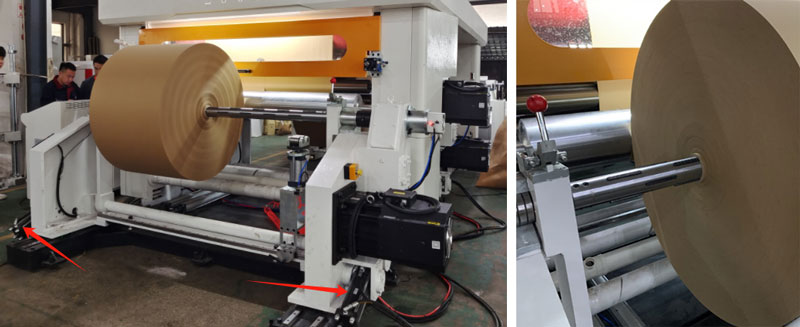

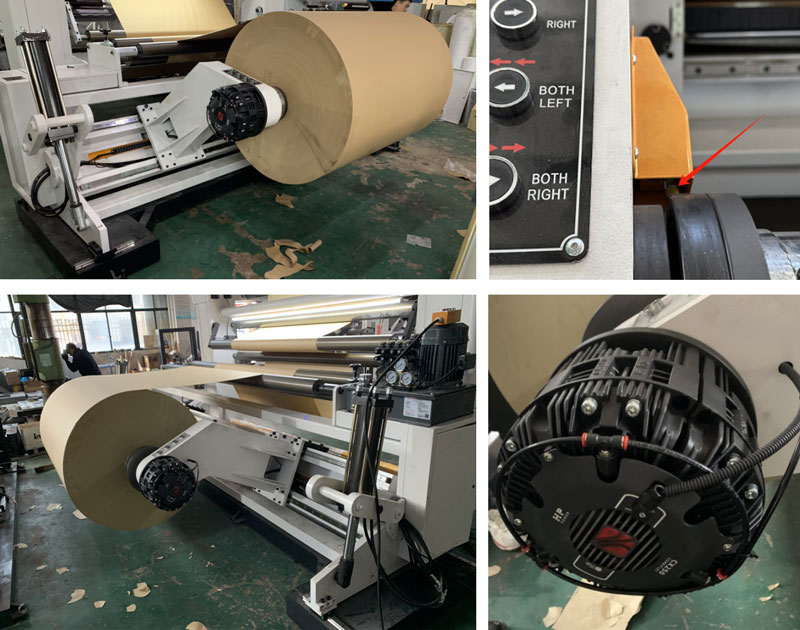

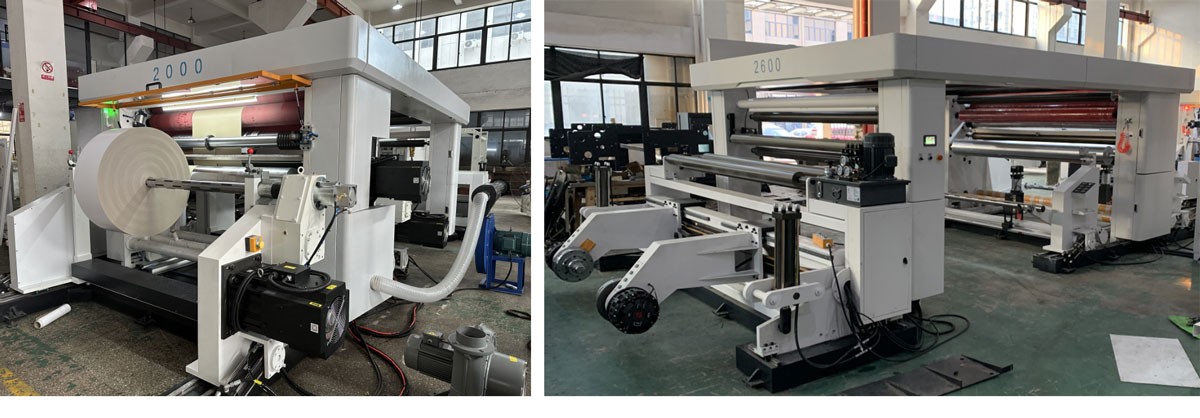

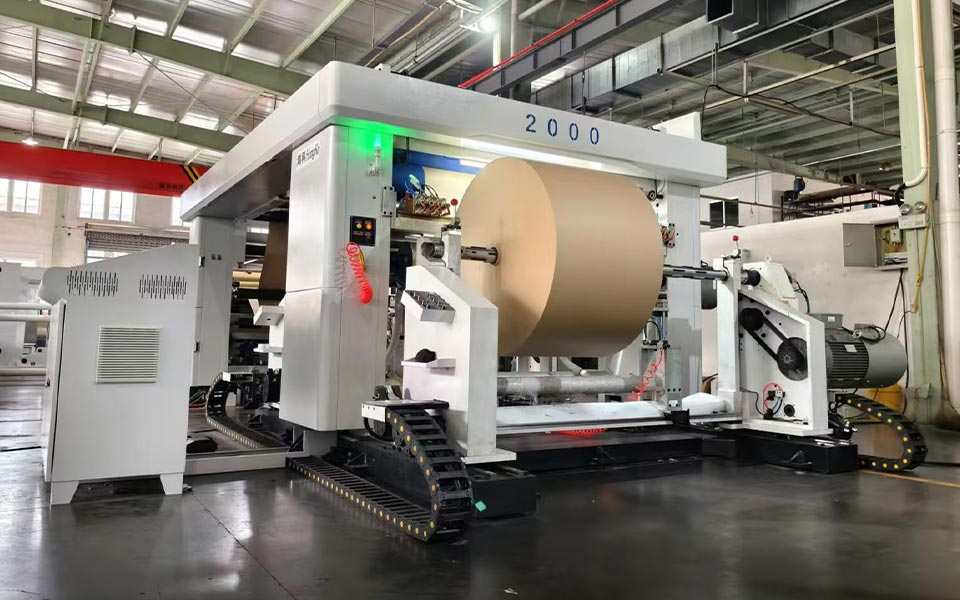

1. Heavy-duty Shaftless unwind

> Heavy-duty Shaftless unwind with auto hydraulic lifting. Equipped standard 3" &6" &12" step chuck.

> Hydraulic system for lifting big jumbo roll from the floor.

> Mechanical arms separately moved on rail by hydraulic driven. One button moves, easy operate.

> RE Pneumatic brake 2 pcs for unwind tension control.

> Proximity sensor for automatic calculation of unwinding rolls diameter.

> Standard spec:

Max. Reel diameter: 1800mm

Max. Reel weight: 3800kg

Inner core size: 3" (76mm) & 6" (152mm) & 12" (304.8mm)

2. Web guide system.

> Equipped an Arise web guide system for edge detection. Ensure the material feeding is exact.

> Web guide system with both Automatic and manual control

> High Precision ultrasonic sensor which easily and fast detects various web edge.

> Include ultrasonic sensor, controller and correct motor.

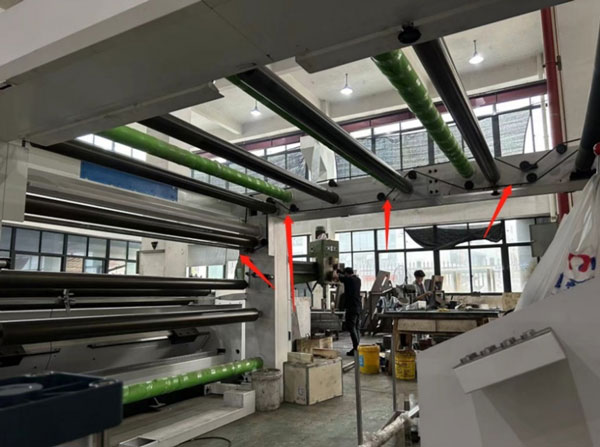

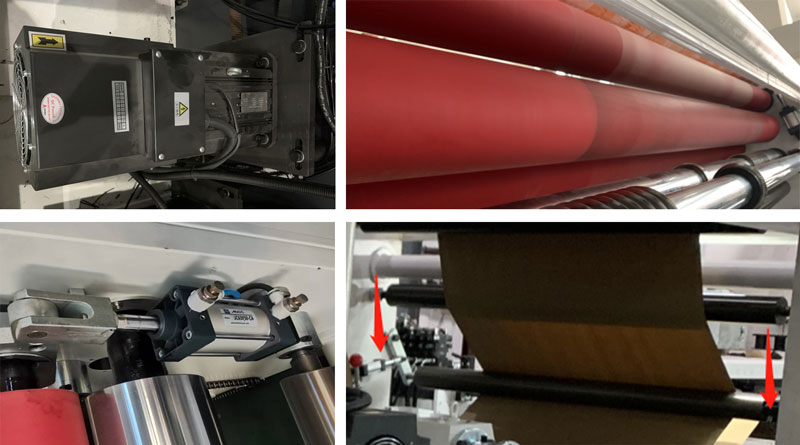

3. Double Rubber Roller Traction System

> Traction use double rubber roller with TPU material driven for both thin and thick paper. (30-500gsm)

> Nip rubber roller with adjustable pneumatic control for perfect tension control.

> Servo motor driven both main traction roller and slitting knife roller with Synchronous belt transmission Ensure that the material does not slip or deform.

> Web dancer roller for long path tension control

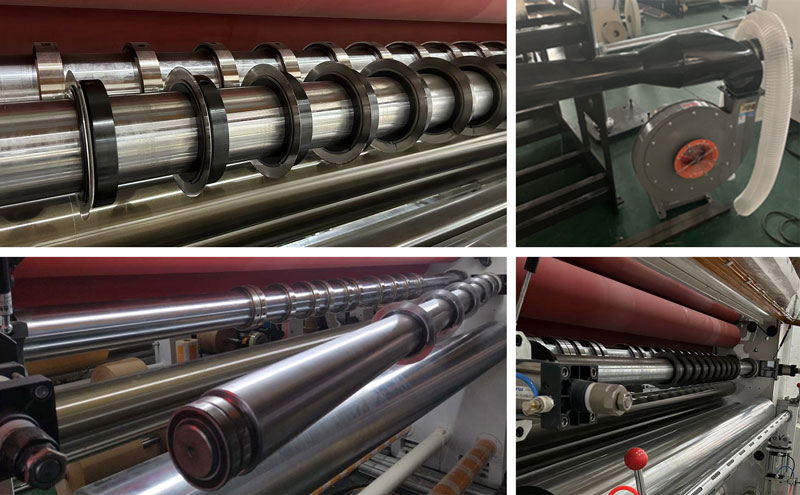

4. Slitting Unit.

> Easy-setting rotary shear knife *10sets install on machine for slitting

> Knife up/down and left/right fine-adjustment are controlled by worm-gear reducers.

> Pneumatic bottom knife shaft is convenient to setting the bottom rotary knives.

> Cantilever upper knife shaft.

> Trim disposal: 5.5 kw trim suction fan.

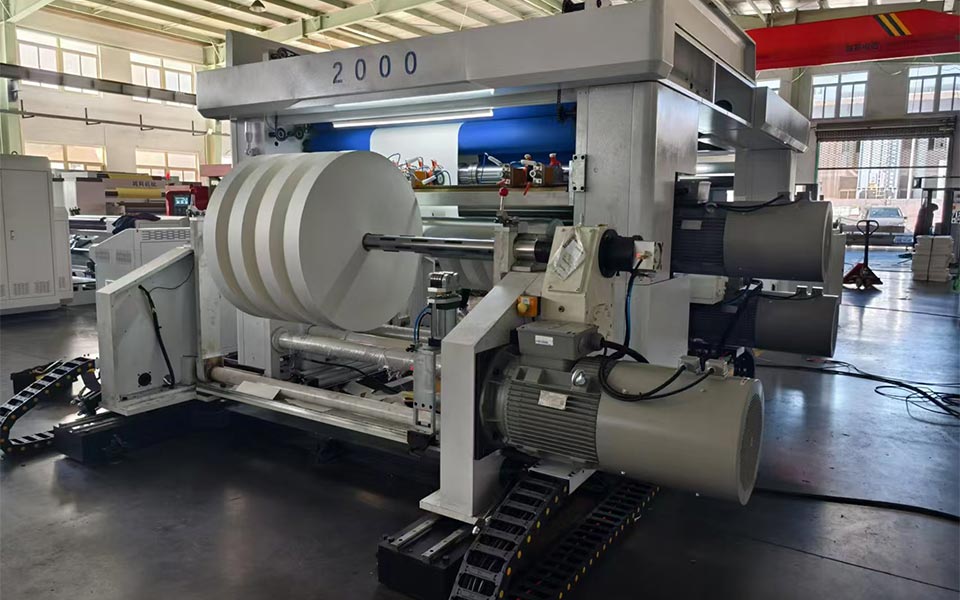

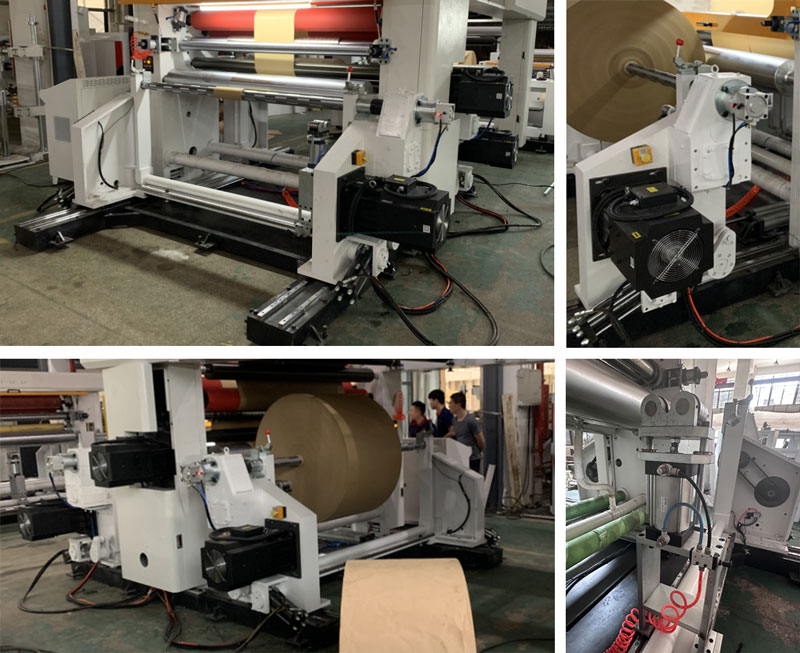

5. Rewinding system.

> The left and right rewind structure, with 3” airshaft *2pcs center winding.

> Pneumatic lock and pneumatic clamp for rewind shaft keeping safety when rewind.

> Individual two servo motor control rewind shaft provides the accurate winding tension control.

> Pneumatic rewind shaft laying on big metal cylinder guarantees full contact between big metal roller and slit roll, the lay-on pressure can be adjusted.

> Shaft supporter enlarge the loading capacity of rewind shaft.

> Standard spec: Max rewind diameter: 1500mm.

6. Auto Unloading of Finished Rolls.

> Automatic rolls unloading structure: hydraulic control to unload the shaft with heavy finished rolls.

> One button control the rise and fall of the rewinding part, easy to operate

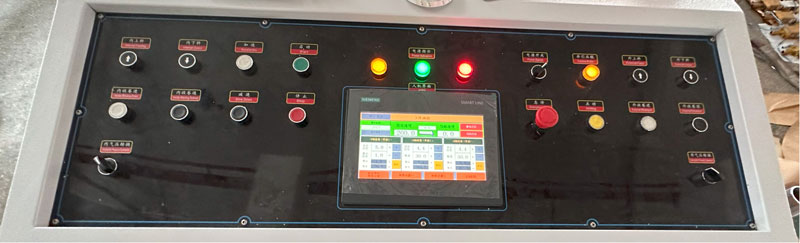

7. Control Panel

> The arrangement of buttons has been designed for easy operation

> The auxiliary control panel is installed at the back of the machine, easy for one person to operate

> Emergency stop installed

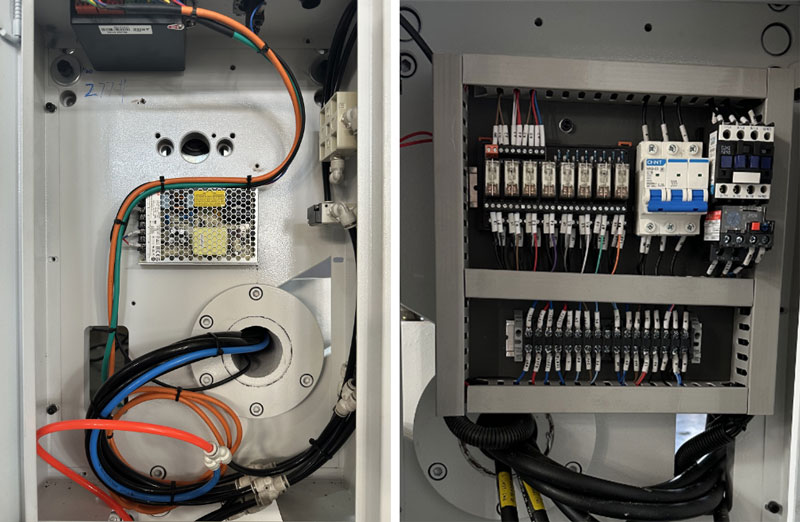

8. Electrical Box & Pneumatic

> All electrical appliances comply with China 3C certificate standard. Safe and long-lasting.

> The layout of the electronic control board has been carefully designed, arranged neatly, and occupies a small area.

> The cabinet door has a grille for good heat dissipation.

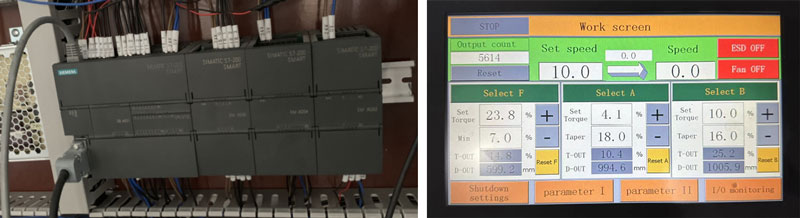

9. PLC & HMI.

>. Colorful 10” touch-screen and PLC

>. Easy exchange both Chinese & English language on touch screen.

>. Automatic tension& diameter calculate and control: Set taper and initial tension on touch screen for your materials, PLC will detect current tension and current diameter automatically and accurately.

>. Meter reached auto alarm and stop function.

>. Unwind Set diameter reached auto alarm and stop function.

>. One button auto speed-up function: Press one button, machine will speed up to your set speed smoothly and automatically.

>. Rewind shaft forward and backward function.

>. Problem diagnosis function on touch screen, if any problems occur, you can check I/O page to find it.

OPTIONAL

1. Auto material feeding

> Motor control web auto handling from unwind to traction roller

2. Dust cleaning system

> This dust cleaning system installed near to the slitting knife.

> Dust cleaning strip connect with suction fan to remove the dust.
