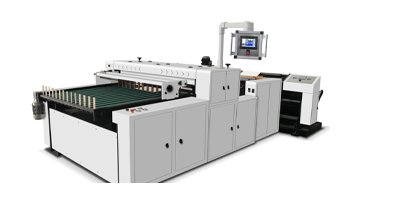

What are some ways to improve the cutting accuracy of roll-to-sheet cutting machines?

Here are some methods to improve the cutting precision of roll-to-sheet cutting machines:

I. Equipment Hardware
Optimization of Cutting Tools
♦Selection of High-Precision Tools: Choose appropriate cutting tools according to the characteristics of the materials to be cut. For example, for high-precision cutting of electronic materials, special carbide tools or diamond tools can be used. These tools have sharper and straighter cutting edges, which can effectively reduce cutting deviations.
♦Regular Grinding and Replacement of Tools: Cutting tools will gradually wear out during use. When the cutting edge becomes blunt, it will affect the cutting precision. Regular grinding of tools can restore their sharpness, and tools should be replaced in a timely manner according to the degree of wear and the requirements of cutting quality. For example, when the burrs on the cutting edge caused by tool wear exceed a certain standard, the tools need to be replaced.
Upgrade of Mechanical Transmission System
♦High-Precision Ball Screws and Linear Guides: The adoption of high-precision ball screws and linear guides in the transmission part of the cutting machine can significantly improve the movement precision of the cutting head or cutting tools. Ball screws can accurately convert rotary motion into linear motion, and linear guides ensure the stability and straightness of the cutting head during movement, reducing vibration and offset.
♦Reduction of Transmission Clearance: Optimize the connection parts of the transmission system, such as using precision couplings, to reduce the clearance between the motor and transmission components. Because transmission clearance will cause lag or overshoot phenomena when the cutting head changes its moving direction, which will affect the cutting precision.
Use of High-Precision Sensors
♦Position Sensors: Install high-precision position sensors, such as grating rulers or magnetic grating rulers, on the cutting platform. These sensors can accurately measure the position of the cutting head in real time and feed back the information to the control system so that the cutting path can be corrected in a timely manner. For example, when the cutting head has a slight offset due to mechanical vibration or other reasons, the control system adjusts the motor drive according to the feedback information from the sensors to make the cutting head return to the correct position.
♦Material Thickness Sensors: For roll-to-sheet cutting, there may be certain non-uniformity in the thickness of materials. Installing material thickness sensors can monitor changes in material thickness in real time, and the control system adjusts the cutting depth or pressure according to the thickness information to ensure cutting precision.
II. Control System
Advanced Motion Control Algorithms
♦Adoption of High-Precision Interpolation Algorithms: For example, advanced linear interpolation and circular interpolation algorithms can be adopted to enable the cutting head to move more smoothly and accurately along the cutting path with complex shapes. For example, when cutting molds or parts with complex curves, these algorithms can ensure the precision of the cutting path and reduce cutting errors caused by unreasonable path planning.
♦Adaptive Control Algorithms: According to the real-time parameter changes during the cutting process, such as material hardness and cutting speed, the movement speed and acceleration of the cutting head are adaptively adjusted. When cutting harder materials, the cutting speed is automatically reduced to avoid cutting deviations caused by excessive cutting force.
Calibration and Compensation Mechanisms
♦Regular Equipment Calibration: Regularly calibrate the cutting machine, including the precision calibration of the mechanical structure and the parameter calibration of the control system. For example, calibrate the perpendicularity and parallelism of the cutting head, and check and adjust the motor parameters, speed loop and position loop gains in the control system.
♦Error Compensation Function: Utilize the software functions of the control system to compensate for possible errors during the cutting process. For example, thermal expansion compensation. When some parts of the cutting machine are heated and expanded after long-term work, the cutting path is fine-tuned through software algorithms to offset the dimensional deviations caused by thermal expansion.
III. Cutting Process
Reasonable Setting of Cutting Parameters
♦Optimization of Cutting Speed: Select an appropriate cutting speed according to the type, thickness and performance of the materials. Generally speaking, the cutting speed can be appropriately increased when cutting thinner materials, but the cutting quality should be ensured. For example, when cutting thin plastic sheets, too high a speed may cause material deformation, while too low a speed will affect production efficiency. The optimal cutting speed needs to be determined through experiments.
♦Adjustment of Cutting Depth and Pressure: For materials of different thicknesses, accurately adjust the cutting depth and the pressure of the cutting tools on the materials. If the cutting depth is too deep, it may damage the underlying materials or lead to a decline in the quality of the cutting edge. Excessive pressure will also cause material deformation or accelerated tool wear.
Stable Material Supply and Fixation
♦Optimization of Material Conveying System: Ensure the stability and smoothness of the roll materials during the conveying process. Adopt high-precision feeding rollers and tension control systems to maintain a constant tension of the materials and prevent the materials from shaking or shifting during the cutting process.
♦Improvement of Material Fixing Devices: Near the cutting area, use appropriate fixtures or vacuum suction devices to fix the materials. For example, for thin and light materials, vacuum suction can effectively prevent the materials from being lifted or displaced by the cutting tools during the cutting process, thereby improving the cutting precision.
